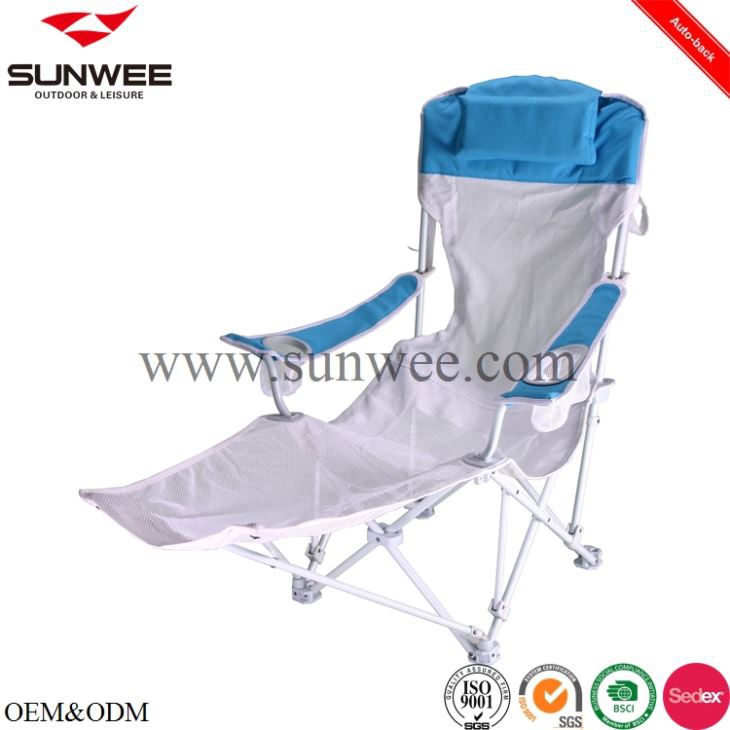

Camping Chairs Auto-Back Lounger with Footrest

The SW-B353FMFT is an auto-back mesh lounger chair with an integrated footrest. The auto-back mechanism uses a rear linkage system: as the user leans back, the backrest angle shifts and the footrest extends simultaneously, without manual adjustment. Push forward to return to the upright position. The footrest remains attached to the main frame at all times-it is not a detachable component.

The armrests are height-adjustable via the same rear linkage. Each armrest carries one cup holder, giving two total. The padded pillow at the head end is detachable with a closure system for cleaning or replacement.

The frame uses two steel tube diameters: φ16×0.9mm at primary load joints and φ13×0.8mm on secondary spans. All tubes are powder-coated for corrosion resistance. The fabric combines 600×300D polyester with PVC coating on the seat panel and breathable polyester mesh on the backrest, footrest, and seat insert areas. The open length reaches 158 cm, making this a full-body reclining position rather than a standard seated chair.

Sunwee has produced this lounger style since the late 1990s. OEM customization covers frame powder-coat color (Pantone matching), fabric stripe pattern and colorway, logo embroidery or patch on the pillow or armrest, and packaging format-plain mailer box, printed color box, or hangtag-only for retail display.

The auto-back recline system is the core mechanical feature. A steel linkage connects the backrest frame to the footrest frame. When the user shifts weight rearward, the linkage translates that force into a synchronized motion: the backrest drops to a reclined angle while the footrest lifts and extends. Return to upright requires the user to push forward with their legs-the linkage reverses the motion. No locks, no pins, no manual release lever. This reduces the number of moving parts that can fail under repeated use.

The steel tube frame uses a two-diameter strategy. φ16×0.9mm tubes handle the primary load path at the seat pivot, backrest hinge, and footrest joint. φ13×0.8mm tubes are used on non-critical spans to reduce weight. All tubes receive powder-coated surface treatment-electrostatically applied polymer cured at high temperature-covering weld seams and preventing rust in humid or coastal environments.

The large plate feet provide a wider contact surface than standard camping chair feet. This distributes the user's weight more evenly on soft ground (sand, grass, gravel) and the textured underside prevents sliding on wet or sloped surfaces.

Fabric panels use 600×300D polyester with PVC reverse coating. The ripstop-style weave (different denier on warp vs. weft) provides tear resistance without adding fabric weight. PVC coating adds water resistance and prevents the fabric from stretching out of shape after repeated loading cycles. The mesh panels on the backrest, seat, and footrest are polyester knit for airflow during warm-weather use.

All high-stress seams use double-stitch construction with bonded nylon thread. The armrest adjustment points and pillow attachment zones are reinforced with bar-tack stitching to prevent pull-through under the repeated force of height adjustments and pillow removal.

The SW-B353FMFT is a full-body reclining camping chair positioned in the mid-to-upper tier of the outdoor seating category. The 158 cm open length and auto-back mechanism differentiate it from standard quad chairs and make it suitable for buyers who want a lounge-style seating option without the bulk of a traditional camp cot or deck chair.

Primary use cases:

• Car camping – The 420D carry bag and ~6.5 kg weight are practical for vehicle-based camping. The auto-back recline and integrated footrest let users rest in a near-horizontal position without setting up a separate cot or hammock.

• Beach recreation – The large plate feet perform better on sand than narrow or spike feet. The breathable mesh panels reduce heat buildup during hot-weather use. The reclined position is suitable for napping or reading at the beach.

• Fishing – Anglers who spend extended periods waiting benefit from the reclined seating position and mesh ventilation. The dual cup holders keep drinks and small items within reach. The carry bag makes transport from vehicle to fishing spot straightforward.

• Glamping sites – Glamping operators this style for premium tent and cabin packages. The lounger aesthetic with footrest aligns with the "comfortable outdoor living" positioning that glamping brands use to justify higher nightly rates.

• RV travel & tailgating – The compact folded profile (29×29×90 cm per 4 pcs) fits in RV storage compartments and vehicle trunks. The auto-back mechanism requires no setup time-unfold and sit.

• Backyard & patio – A growing segment of buyers use outdoor loungers for semi-permanent garden or patio placement. The powder-coated steel frame and PVC-coated fabric handle sun and rain exposure better than untreated alternatives.

CALL TO ACTION

Contact the Sunwee sales team today for the complete 2026 Camping Lounger catalog, exact 40HQ container loading quantities, or a customized prototype sample with your logo, fabric specification, and packaging format. Production lead time is 45–60 days after deposit. MOQ starts at 1,000 pcs. All pricing is factory-direct from Xiamen, Fujian.
